Nikon D4 Review

12 Becomes 16

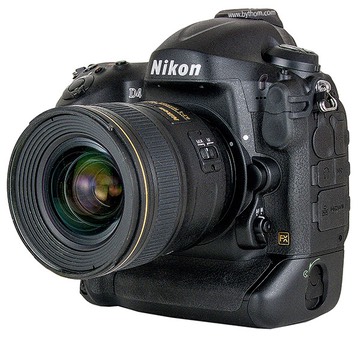

PROD-SHOT 2-2013 D4 29537.JPG

It's difficult to believe it has been a year since the D4 first started getting into users' hands (including me). A very quiet year, as it seems that virtually none of the usual Web sources has taken the time to review this top-of-the-line camera yet (including me). Is that good news or bad?

In my defense, I generally don't review a camera until I've had plenty of shooting experience with it. As it turns out, 2012 wasn't exactly a year in which I did much shooting that required the D4. Thus, it's taken more time than usual to get enough experience with it to say anything definitive. A number of folk apparently believed my silence (and that of others), has been because there's something wrong with the camera. No, not really. It's a complex product that takes a lot of work to get through even most of its features, let alone assess all its performance aspects.

Let me just say up front: a D4 in practice is an awful lot like a D3s with some modest improvements, but 4mp more data. That statement alone has some implications in it, as in "it might not be worth it for a D3s user to upgrade." We'll get to that. Let's first talk about the camera's features and changes.

Funny thing is, while there are a lot of changes from the D3s to the D4, many of them seem trivial, arbitrary, or not overly seductive. Things like changing the 3" LCD to a 3.2" one, for example. Some even seem like a step backward, the new EN-EL18 battery is only 2000mAh versus the EN-EL4a's (D3s) 2500mAh (there's also a small voltage change that's not in the favor of the new battery, too).

So let's start with that battery change. Nikon claims that new Japanese market laws made it impossible to keep the old EN-EL4a in production. Something about maximum capacity of small Lion batteries now allowed; the EN-EL4a is over the limit for its size, apparently. Nikon also makes claims about the D4 being more efficient in power usage than the D3s, so everything should basically be a wash, maybe even an advantage in certain types of shooting. Okay, I'll buy all that. What I don't buy, and what pros everywhere didn't like, is that Nikon engineered a new battery shape and door that looks an awful lot like the old one, but is just enough different than the older battery so that there's no interchangeability between D3 and D4 bodies. Zero. As in, throw out all your old EN-EL4a batteries as they do you no good once you've switched to the D4 series.

Frankly, that was a dead wrong decision on Nikon's part. They could have engineered a solution (battery compartment door and new battery) that allowed use of older batteries, if you had them. Instead, here in the transition period where some of us have a D4 and a D3x, we're now in a two battery set situation. This is so customer unfriendly to Nikon's best customers, it's difficult to explain. Certainly Nikon hasn't explained it well enough. The net impact, though, is those of us who were D3s/D3x users that now are D4/D800E users, have to jettison perfectly fine batteries and keep two sets of new ones, one of which is worse than the previous one in performance. That's a big ugly start towards trying to convince pros to switch. There had better be compelling points elsewhere that offset it.

Turns out, Nikon did think of one way to address the possible battery issue. Strangely, they forgot to mention it to almost anyone, even themselves. You won't find it at B&H or even on the Nikon online store here in the US, but believe it or not, Nikon made something called the BT-A10 Battery Adapter. It adapts a EN-EL4 type battery to charge on the MH-26 Battery Charger. Only a couple of problems. It does not appear that they sell the adapter by itself: you have to buy another MH-26 to get it (officially known as the MH-26aAK Adapter Kit), and that'll set you back another US$460, or US$160 more than an MH-26 charger. Just to charge your D3 batteries on a D4 charger. Sigh. Oh, and where do you get this marvelous device? I'm not sure. The Nikon part number is 27112

Let's look at some other aspects that are new. For example, the backlit buttons. Yes, they are backlit, but only if you hit the LCD illumination function on the Power switch or you turn LCD illumination On. Not all of the buttons are backlit, either. The playback, Delete, and AF-On buttons aren't, for example. As Nikon has configured it, you're faced with either an all-or-nothing choice (LCD illumination On) or an extra-step process (Power switch illumination). Certainly the latter can be learned, and you can argue that having backlit buttons that you can enable is better than not having them. Yet as implemented, it feels incomplete and not fully thought out (there's nothing that any of the backlit buttons relate to that is in the top LCD, for example, so having the buttons always linked to the top LCD illumination seems like a power waste in most situations). That's one of the problems of adding features to a pro camera: we pros want lots of flexibility and control; this addition gives us little, though it does give us a potentially useful thing.

I'll continue my discussion of new things in a more disciplined manner. Let's step around the camera side by side while examining the changes.


From the front, you'll notice some "curve" and slight size differences (which I'll talk about more in Handling), but probably not any quickly identifiable changes. There are actually two that come into play while shooting: the DOF Preview and Fn buttons are ever so slightly closer together on a D4, and the D4 uses the D7000-style Autofocus mode switch and button instead of the old C/S/M switch on the front with other controls on the back of the camera.

Up top, we have a new red Record Video button between the Mode and Exposure Compensation buttons that have been moved slightly. There's no longer a locking Metering Method selector on the side of the prism, but instead the L button (Lock) on the top button cluster has been changed to a Metering Method button. What happened to Lock? It's an assignable function to the programmable buttons (button plus front dial locks/unlocks aperture, button plus rear dial locks/unlocks shutter). There's also a dedicated lock function (CSM #F8).

On the back things change a fair amount, as we now have a six-button stack to the left of the color LCD instead of a five. That stack now includes the Zoom In/Zoom Out button arrangement ala recent consumer Nikon DSLRs: no more button+dial to zoom. Live View gets the Still/Video switch, which made it big enough to displace the Microphone button down to under the lower LCD. Besides the slightly larger main LCD, the most obvious differences are the loss of the Focus Area selector (now done with the Focus Mode button on the front of the camera), and the addition of two miniature thumb joysticks. I'll have more to say about the latter in Handling.


D3s on left, D4 on right

On the left side of the camera (viewed while holding it) we have four discrete doors to the connectors instead of two. For certain uses, this minimizes door flaps sticking out and potentially interfering with your left hand position, for other uses you'll have more flaps open to contend with. Not sure there's a gain here. But we did gain dedicated WT-5 and Ethernet connectors for communications, while we lost the DC Power In socket (now you use a dedicated replacement for the battery when connected to DC). Plus, of course, we have a new battery compartment door (which doesn't have a name etched on it, which makes it difficult to figure out which door you have in your hand when you've got both D3 and D4 doors sitting around; do Nikon engineers actually use the cameras they design?).

All told, the observable external changes are again minimal between pro generations, though not as minimal as the D2x to D3 changeover.

Inside the camera we find the more substantive changes. You all want to know about the sensor first, I suppose, so let's deal with it. Instead of a Nikon 12mp sensor (D3s) or Sony 24mp sensor (D3x), we now have a Nikon 16mp sensor. And yes, it's a Nikon only part (NC81366W), with Nikon ownership etchings in the silicon. This is coupled with an EXPEED3 ASIC.

What you get from the combo is 16mp images (4828x3280 max) that can be rattled off at 10 fps for what seems like forever (13 seconds with JPEG Fine, even 10 seconds saving 14-bit raw files to an XQD card; more on that in a bit). That's one heck of a lot of data being captured and moved around with aplomb. By comparison, the D3s hit the limit at 9 seconds with JPEG Fine and 4 seconds with 14-bit raw files, which seemed perfectly acceptable at the time. Note that a Nikon V2 (14mp) will rattle off 60 raw images in a second using the EXPEED3, which seems to indicate that the ASIC has some bandwidth potential that's not being used in the D4, believe it or not.

The new sensor and EXPEED3 combo has some other tricks up its sleeve, too. Video has been completely reworked from the D3s's limited 720P. Nikon now gives us 1080P/24/25/30 and 720P/24/25/30/50/60 with very good H.264 compression (this current compression engine in the EXPEED3 is far better than previous generations). If that weren't enough, the D4 can output clean, uncompressed 8-bit video on the HDMI port for display or recording by an external device. With something like the Atomos Ninja or other external recorder, you can get broadcast quality video out of the D4. But wait, there's more! If you order now you can also shoot 2mp stills while recording video, plus you can get a very useful and clean 1:1 sensor output mode that doesn't have any video subsampling artifacts (2.7x crop).

If it's starting to sound a bit like a lot of the substantive changes are video related, they are. It's clear that Nikon spent some time thinking through and engineering pro-level video options on this camera, right down to the fact that you can output Broadcast range-limited video on the HDMI port (correctly set Black and White levels) and change the aperture continuously rather than in stops. Some of us probably wish that the same level of effort had been applied on the stills side, but some of you are probably happy to have a much more versatile pro body that can output both quality stills and video as needed.

We have many more internal features to hit on. One that engenders as much controversy as the battery change is the dual card slot. On the D3 series, we had dual CompactFlash slots. With the D4 we now have a mixed slot situation: one XQD slot and one CompactFlash slot. This is one of those good news/bad news situations. The good news is that CompactFlash is about topped out in speed, but XQD can take us much, much faster. Even on the D4 there is a difference: you can buffer about 16 more 14-bit images on the XQD slot than the CompactFlash one because the cards are just clearing data that much faster. If you're shooting at 10 fps, you'd notice the difference. If you're just shooting more casually, you're probably not going to notice much difference from the D3s other than the buffer seems bigger the few times you do press it.

Aside: it seems that some folk reading the review aren't aware of the history of XQD. XQD was originally a joint development project by SanDisk, Nikon, and Sony, who developed the XQD standard and got it approved. Prior to the D4 appearing, SanDisk withdrew support for some reason, and has not indicated any interest in producing XQD cards, leaving Nikon and Sony as the only companies making products with it at the time of the D4's introduction. Since then, after a long on-again, off-again delay, Lexar introduced XQD cards, which is strange, because they weren't part of the original development team and their main competitor was. Thus, Nikon wasn't sucked into or convinced by anyone else to go with XQD. They were in the development consortium from the beginning, likely because of the reason I note in performance: CompactFlash cards can't keep up with a D4 for long.

It's the mix of slots and the non-acceptance of XQD by others that is grating on most Nikon pro minds. We'd all prefer to have two matched slots. For a lot of reasons. First, when you have both slots active, the slower card is what determines the performance of the camera, and that will always be the CompactFlash slot. If you don't have UDMA-7 type CompactFlash cards (e.g. are using non-state-of-the-art ones), you may very well notice right away that something's amiss. When you shoot with Secondary Slot Function set to Backup, performance is determined by the CompactFlash card. Yes, I know this means you can still use some older cards in the D4, but you will suffer a performance hit in doing so. Most of us pros I think would rather have matching slots, as it means only carrying one type of card with us. Consider if you're shooting with a D3s or D3x and a D4: different batteries, different cards, different DC dongles, different WiFi adapters. That's just enough to make it a logistical nightmare for someone carrying along both bodies and needing all the options. Yes, progress in technology does lead to obsolescence, but Nikon picked some strange form of overlap-but-not-quite-overlap and made things a little more difficult than it had to be, I think.

Then there's the stunning bit: either Nikon was way ahead of the pack in adopting XQD, or they took a wrong turn. Here we are over a year later, and we've not had one other significant product embrace XQD. Not one. Co-developer Sony touted these cards as being great for video use, but the only products Sony makes that can use the cards are high-end XDCAM models, and then only via an adapter; essentially they're a secondary option on these pro video cameras (as are SD cards and Memory sticks). So at present we have two card makers (Sony and Lexar), one still camera that uses them (D4), and a small handful of high-end video cameras that can use them via adapters. Doesn't seem like the world is moving to XQD, does it?

Aside: yes, it's time for another near rant. Even a 16GB XQD card costs US$80, a bit more than a UDMA-7 CompactFlash card of the same size. Bigger sizes are very expensive. Okay, so a D4 user has to make an investment in cards. How much of an investment? Two? Three? Four? At the moment, it looks like that investment will only be used in the D4. This is where Nikon's complete silence about general future plans causes grief. We all expect a D4x. Will it use XQD cards? The D800 didn't, after all. Is the D4 a one-and-done use of the card, or will Nikon commit to using it moving forward? Who knows? Nikon does. The amount of time it took for any second party to step up (Lexar) was disconcerting, because it implies that Nikon didn't tell the card manufacturers about plans to use the card moving forward. SanDisk, one of the original developers, has currently opted out of producing XQD cards. So here we D4 users are forced to think of things as one-and-done: buy only enough cards that we need to keep our D4's chirping along at full speed in our shooting, and no extras. Even a simple statement: "we're committed to XQD and are currently planning other performance oriented products that will use it" would be reassuring. But Nikon doesn't talk much to its customers, not even its top customers. So we get silence. So at the moment, none of us want to buy many XQD cards; basically we all buy just enough to get by. Since we got one free with the early D4 shipments, some of us have only bought one more card, which produces a chicken-and-egg problem: no producer wants to make cards because no one is buying them. XQD is Nikon at its most maddening: "hey we introduced a new great technology" followed by complete silence. Yeah, way to market Nikon. Way to market.

Back to the changes.

The focus system, as noted, uses the front button/switch with feedback in the viewfinder to control all major focus settings, ala what was first introduced with the D7000 and now has appeared on all other models at that level or higher. Personally, I'm all for it. No taking the eye from the viewfinder to change modes. It does take some getting used to, though. One focus setting we need to have the same level of control for is Focus Tracking Lock On. Unfortunately it's still buried in the menu system. Why does it need to be at the shooting level? Because the subject you're shooting and the backgrounds against which you're shooting make you want to change it sometimes. Take BIF (birds in flight). Blue sky as background allows a different Lock On timing than bird flying low with trees in background. Same thing happens in sports, events, and other situations with complex movements present.

Another change in the focus system is that f/8 lenses (and lenses with adapters that are effectively f/8) now support autofocus. There are some penalties for this: from f/5.6 to f/8 not all sensors are active, and at f/8 only a small subset near the center are active. Still, if you're at 1000mm f/8 (500mm f/4 with TC-20EIII) you're probably not trying to focus at the edges of focus area, and using the central area is probably within the depth of field of your subject across the frame. You do have to learn what sensors are active, but I don't see this as a large penalty.

The focus system is also even more tightly tied to the metering sensor in the viewfinder, and that sensor itself has been upgraded to 91,000 pixels (from 2016). This, coupled with the D4's fast CPU makes for an autofocus system that sometimes seems to have a very smart mind of its own. Again, like the D3 models, the big benefit comes with some of the automated focus choices when following humans in action (skin tone detection, apparently). Focus also works at 10 fps full frame, a slight increase from the D3 models.

A few new menu options (some seen on other models between the D3s and D4) appear, too: Timelapse, Exposure compensation for flash (separate flash exposure and exposure compensation), and a new Store points by orientation function that has the camera move your selected focus point when you move the camera between horizontal and vertical orientation. In other words, if you had selected a left-hand point when shooting horizontally, moving the camera vertically will still have a left-hand point selected. One surprising bit: the new additional GameBoy-like thumb pads can be programmed separately from the main Direction pad, and pressing these small controls into the camera is a programmable button action! That gives us five customizable buttons (six if you count the button in the center of the Direction pad). If you can't customize a D4 to your usage, I'm not sure which camera you can.

One last new bit: an Ethernet connection on the camera. This is a bit more than it at first looks. Believe it or not, there is a Linux-based computer sitting at the base of the Ethernet system, which means that there's potential for much more than just moving images off the camera. The D4 moves images off the camera very effectively via Ethernet, too. On the order of perhaps a full 14-bit lossless NEF every three to four seconds. It's a little difficult to measure exactly, but it's very much faster than using a direct USB connection, and even a little faster than the WT-5 WiFi option (maybe 5.5MB/s for Ethernet versus about 5MB/s for WiFi).

Even more interesting is that the D4 has an HTTP server mode, so you can fire up the Web browser on your computer and connect to the Live View and perform camera control of the D4. That's right, you can make some camera control changes via Ethernet, and get Live View with only a slight lag. Nikon is also fond of showing a connection to an iPad, but here things slow down a bit, as you are communicating on the iPad's slower WiFi to a computer, and then via the computer's Ethernet connection to the camera. However, it's still a usable tool for some. I'm sure by now a few enterprising studios have mashed up some interesting setups via all the communication capabilities that are possible. If you're interested in the Ethernet abilities, be sure to read Nikon's Network Guide.

But wait, there's more. If you have more than one D4, you can set one to act as a master release to up to 10 others (synchronized release). You need a WT-5 on each camera, but this is an interesting solution for the pro sports or event photographer who has set up remotes at a venue and wants to control them from the main camera they're carrying. Of course, most of us long ago started using PocketWizards for this same function, and they're cheaper than buying a bunch of WT-5's and easier to configure.

What is It?

Since we've now had three "big" FX performance bodies, it probably is useful to look at a table of the primary differences:

D3 D3s D4
12mp Nikon sensor 12mp Nikon sensor (improved) 16mp Nikon sensor
no video 720P/24 max (unspecified bitrate, no external recording 1080P/30 max video (24Mbps bit stream in camera, 4:2:0 8-bit uncompressed on HDMI port)
51-point autofocus, f/5.6 lens cutoff 51-point autofocus, f/5.6 lens cutoff 51-point autofocus, f/8 lens cutoff
1005-pixel metering sensor 1005-pixel metering sensor 91,000-pixel metering sensor
Dual CompactFlash card slots Dual CompactFlash card slots Dual card slots, one XQD, one CompactFlash
EN-EL4a battery EN-EL4a battery EN-EL18 battery
  Changes: sensor cleaning, 720P/24 video, larger buffer, 1.2x crop, Info and dedicated LV buttons, extended shooting banks, additional Active D-Lighting settings, assignable BKT button, simplified menus for some items, flicker reduction, 300k rated shutter Changes: new focus control switch (front of camera), changed zoom/zoom out to buttons, lost AE-L/AF-L and L buttons, added thumb control pads, moved several buttons, moved metering method button, put controls in same position on both vertical and horizontal grip, upped fps to 10, 400k rated shutter, silent shooting (2mp), WT-5 connector, Ethernet support, two-frame HDR, Picture Control button, backlit buttons, Auto ISO now supports focal length setting, IPTC data can be entered directly

How's it Handle?

First up, we have to address one major change that most people don't notice on first visual inspection: Nikon has once again worked with Italian designer Giugiaro to tweak the camera's basic body shapes. This relationship started with the F3 many decades ago, and has persisted through most of the pro generation changes.

If you're coming from a D3 model you'll immediately feel the changes in your hand. In particular, the shutter release area (on both the horizontal and vertical grip positions) has more angle to it, and the hand grip itself is a bit deeper. I don't have large hands, so now the right-hand grip feels a bit too big to me, but it's likely to please some, and it does work a bit better with gloves. But the slope of the shutter release had a lot of folk complaining early on (the D800 shares this). That part, I believe, is clearly for the better long run, as it puts the index finger in a more relaxed position overall.

More important, however, is that Giugiaro finally convinced Nikon to think of the horizontal and vertical holding positions as "the same." That's not perfectly accomplished on the D4--I'm not sure you can really do it perfectly short of making the body a bit ungainly--but it's very close. Here's what got improved: the AF-On button is in the same relative position to the hand position on either grip, and so are the two new sub-controller pads (thumb pads). No more reaching for a button in an awkward place or stretching to move the focus position when shooting with the vertical grip. Of course, we don't have an echo of the Depth of Field Preview and Fn buttons on the vertical grip, which would have completely rounded the shooting situation to not favor either position, so Giugiaro still has a bit of convincing to do with the Nikon designers.

One other thing about those thumb pads: they're not the level of quality of the rest of the body. Every other control and button is pretty hardy. But I'm worried about these two little pads and the main Direction pad. First, they stick out enough from the body that they tend to catch on bags and other things as you're handling the camera. Second, they don't have the quality feel of the rest of the controls, especially the thumb pads. I've already heard from pros who've had the thumb pads break off on their cameras. My guess is that this will become one of the more frequent D4 repairs from rough use.

Plenty of other subtle body tweaks are present, too, most of which haven't really been written about or discussed by photographers, but which most certainly make for subtle improvements in handling. For example, the buttons on the left edge of the color LCD all have a subtle indent from the left edge to the button, making them easier to find by feel. The ISO, QUAL, and WB buttons are now labeled on the button rather than above the button. Unfortunately, Nikon still hasn't figured out that we need a raised dot on certain buttons to find them by feel. This is especially true of the ISO/QUAL/WB buttons: a raised dot on the middle QUAL button would allow us to find all three by feel (find the dot, go left for ISO, right for WB, or press for QUAL).

Flash users will find good news (this change is also on the D600 and D7100): Exposure comp. for flash is a new Custom Setting that allows you to remove (ambient) exposure compensation from flash exposure calculations in i-TTL modes. Let's see, I first mentioned the problem of interlocked exposure and flash exposure compensation back in my Nikon Flash Guide, published in 2001 (see "Warning" on page 315, for example). Here we are over a decade later and Nikon has finally addressed this, though it's buried in a Custom Setting and the default is the old way that's problematic.

There's other work to do, though. Two things still bother me about the current implementation: more "which button" problems and the "button with glove" problem. They are related. Consider the top button cluster (Flash, BKT, Metering). Nikon has put a very subtle "outer ridge" on these buttons. Too subtle, I think. By feel it isn't always easy to find the right button while keeping the eye at the viewfinder. Moreover, with thick gloves on you can't always hit them accurately (not enough extension above the main surface). You see this on the vertical grip AF-On button, too: the horizontal grip version of the button is raised above the surface and unmistakable to find with your thumb. The vertical grip version doesn't have as much ridge; with even light gloves it's more difficult to find.

We're into the ninth generation of Nikon pro cameras, and we're now into a world of lots of potential connections, too. While I commented about the multiple flaps hiding the connectors on the D4, I'm a little disappointed that the design is still: plugs sticking directly into the camera with no support. Shooting video I have three plugs coming out of the left side of the camera and maybe one coming out the left front (remote control). That's a lot of wire left unsupported and making for no good hand position on the left side of the camera. It's time for some camera maker to realize that we need a solution that works both for the hand and to keep connectors from getting stressed. The simplest solution I have to that is to use right-angle connectors into the camera and a cable channel that has a lock bar at the bottom of the camera. Unfortunately, using anything plugged into connectors on the D4 just gives you cables that are easily dislodged, snagged, and have stress on them, and which get in the way of the hand.

While we're on that subject, Nikon did address the WiFi problem as it applies to cords: the new compact WT-5 plugs into a new special connector on the left side of the camera. Coupled with its small size and position high up in the connector set, it's reasonably out of the way and less likely to be snagged accidentally. Basically you just add a small hump to the side of the camera, one that has locking connector. Score that one right for a change.

If you're still using a D3 model and the D4 in a single shooting session, as some pros do, cognitive dissonance raises its ugly head a bit, as usual with all the cheese Nikon keeps moving. While much on the cameras are alike in handling, there's enough different that isn't that sometimes I have to think to remember which camera is in my hands. If you're in this situation, here are the big differences that'll cause you to want to know which camera you have in your hand: autofocus controls, metering method, AE-L/AF-L (the D4 doesn't have this button), voice annotation, and zooming on image review. Everything else should feel pretty natural in terms of transition.

Other subtle handling issues you might not have noticed: continuous shooting now extends to 200 images, not the 130 of the D3 models. In Live View, the aperture is active and the exposure shown on the color LCD is settable to be accurate to the ambient light settings or not in Manual exposure mode (OK button switches).

Finally, I like XQD cards. Pros are in a hurry (usually). Removing and inserting an XQD card is very reliable and easy. No chance of bending pins when you're in a hurry, as sometimes happen with CompactFlash. No extra button to press to release the card. Put differently, the XQD card changing experience is exactly what a pro wants: simple, fast, and reliable.

How's it Perform?

Battery Life — One of Nikon's claims about the new battery is that the camera was optimized to it so that you'd get a few more images with a D4 than you did with a D3s in normal shooting. Would that were always true. The Watt hours of the batteries suggests an 18% difference, but in practice it doesn't work that way. Nikon says that the new battery is optimized to the "always active" state (as might happen with a pro sports shooter). If that describes your situation (meter always active and camera continuously focusing and firing off images), you may do better with the new battery on the D4 than the older battery on the D3s. The more idle the camera is, the worse things should get, though. My current estimate is that I'm getting about 10% fewer images per charge with my D4 than my D3s in near equal use and settings. Given how good the D3 battery was in the first place, that's actually not terrible. After all, 90% of 2500 images is still 2250 images. Things would be a lot different if we were talking about numbers in the triple digits.

That said, be careful. With a GPS active, the WT-5 active, or the HDMI port active for shooting video to record externally, you're chewing the battery harder. Still good performance, though. I was able to run a D4 continuously for HDMI recording for a three hour performance (and surprisingly, the sensor didn't overheat during that time, either). So the battery is still very good for high-drain uses, just not as good as the old EN-EL4a was.

Writing to Card — You simply have to try an XQD card versus a UDMA-7 CompactFlash card (state of the art) to see why Nikon put that card slot in the D4. First, we have an incredibly deep buffer because of the XQD speed at unloading it. Technically, you can shoot an entire 100 meter race in raw without filling the buffer at 10 fps. Wow. But here's the thing: when the buffer fills, I'm still getting faster than one frame per second shooting NEF+JPEG Large Fine! By my measurements, the XQD slot is writing at least 90MB/s.

There's no doubt in my mind that the D4 has the best write performance of any Nikon camera to date. If you're a buffer bully, you're going to have a difficult time intimidating the D4.

CompactFlash, not nearly as great. If you have an older UDMA-enabled card, it probably won't work faster in a D4 than it did in the D3. I only seem to be able to get a speed bump with UDMA-7 cards. Even then the max I've seen is 60MB/s (my older SanDisk Extreme Pro cards are about 50MB/s).

Which brings us back to the mixed card slot issue. Once you've shot with an XQD card in heated action, you won't want to go back. You'll be one of the ones wondering why there aren't two XQD slots in the D4.

Autofocus System — Best focusing Nikon yet, simple as that. It's actually instructive to set the camera in one of the continuous auto modes and watch the focus indicator jump around as you pan, zoom, and compose a moving subject. Finally, you can kind of tell what the camera is trying to do. Sometimes that will be closest subject, sometimes highest contrast, sometimes the area that has the most things at the same distance. While I don't tend to shoot in the all automatic modes, I would definitely suggest any D4 user spend some time watching them to see what they do. The semi-automatic modes (dynamic area) do similar things, but with some user control attached.

One thing I didn't touch on in handling but definitely comes into play when we start looking at the focus system is the red focus sensor position indicators. Gone are the black in bright light, red in dim light sensors. They're always red in the D4. Moreover, the overlay that drives this leaves tends to "ghost" all the sensors (more visible in some light than others). Some users find this distracting, others find it useful (there's always been a subset of folk that ask why all the positions aren't always shown in the viewfinder; the answer is: it can be distracting, so if such a thing were to be implemented, it should be an option, IMHO). I'm of mixed opinion on this. Sometimes I find the ghosting useful, sometimes I find it distracting. Unfortunately, because it's an artifact of how the overlay lighting works, it ain't going to change and there won't be an option involving it via a firmware update.

Noise and Dynamic Range — So here we go. Everyone wants to know about noise. Is the D4 still the champ given it's 4mp increase over the D3?

Here's my usual underexposed JPEG at ISO 3200, direct out of camera:

BBallTest-2-2013-D4 29484JPEG.JPG

Looks a little drab, as we'd expect an underexposed JPEG to, but you're not seeing much noise, are you? Let's take the same image in raw form and run it through absolutely basic Adobe Raw conversion:

BBallTest-2-2013-D4 29484raw.JPG

Wowsa that's good. We're pretty close to ISO 6400 here after the exposure correction in Adobe Raw. I'm used minimal sharpening and noise reduction in the ACR tools. There's a small bit of residual noise, but look at the net: detail is still present. You can see it in the ball, too. So here we have an underexposed ISO 3200 image that cleans up terrific. How's that work out in actual shooting? Here's a slightly cropped frame and a closer look:

BBallTest-2-2013-D4 29511full.JPG
BBallTest-2-2013-D4 29511crop.JPG

Pretty darned good for ISO 3200 work. Note that the blacks look black, not a pile of dark noise. About as good you're going to get from a current production camera.

But you're all wanting a bit more about image quality, and that's where it's going to get a little difficult to describe. We have two prime candidates to talk about:

  • D3s versus D4. For the most part, this is almost purely a 4mp gain when looked at one way (at per pixel noise levels): what you saw at 12mp at the pixel level on a D3s will look a lot like what you see at 16mp at the pixel level on a D4. Indeed, the D4 may be a tiny bit better when measured that way, and the D4 holds color values slightly better up to ISO 12,800. How the heck did Nikon do that? Apparently via even more attention to the individual photosites and microlenses. Light that hits the continuous microlenses is very tightly refocused into the tunnel that leads down to the actual photon-to-electron mechanism, but those tunnels are wider now, too (narrower walls between sites). Simply put, more light can get to the capture portion of the photosite than it did with the D3s.

    But were it that simple. JPEG shooters are going to find that the D3s and the D4 are a bit different in setting noise reduction, which can impact how the final pixels will look, thus EXPEED3 is doing some minor lifting, as well. For example, the D3s did not set any noise reduction until you set an ISO above 3200, the D4 sets some noise reduction as early as ISO 200 (if you've set High ISO NR to High). So JPEG shooters and NEF shooters are going to notice something slightly different as they boost ISO levels (even with High ISO NR set to Off!). I would characterize this as the D4 being more finely tuned than the D3s with JPEGs, but you have to like and accept Nikon's noise reduction routines on a D4.

    And it gets even more intriguing. The red and blue channel response is definitely slightly different on the D4 than on the D3s. I would characterize this as both the red and blue channels being slightly weaker in response than the D3s. This very well could be a change in filtration to let in more light. The implication is that color differentiation might be a bit better on the D3s in light well away from the expected response. Can I see that in images? Maybe. I think I see a slightly different noise pattern in the red channel on the D4 than on the D3s, with the D3s being a bit more well behaved. But I'm picking nits here. Color discrimination is still quite good at high ISO values with the D4.

    Which brings us to dynamic range. The D3 and D3s were characterized as being read noise restrained up to about ISO 800, which limited their base ISO dynamic range. The D4 is slightly different. There's about a stop more engineering DR at ISO 200, and this falls slowly until at about ISO 3200 the two cameras are very close in measurement. So, yes, at lower ISO values, the D4 has some small, but meaningful advantage over the D3s.

    Still, I can't help get the feeling that, unless you need the extra pixels, the D3s is just fine. While I can find test differences that are significant visually at the pixel level, the D3s holds up well against the D4. But then there's the counter argument: even if you lose or gain nothing, wouldn't you want the extra pixels? This is far trickier than it first seems. After all, the D3s was only a small step from the D3, albeit a significant one. The D4 is only a small step from the D3s, albeit a significant one. It's easy to see that a D3 to D4 move will give you plenty to like. It's less obvious in the D3s to D4 move. Enough so, that other factors may enter into your decision (trap focus or the back switch for Focus Mode on the D3s, for example, or the better ergonomics of the D4).

    In conclusion I'd caution the D3s user to expect huge differences in moving up to a D4. Make sure the changes are ones you value.
  • D800 versus D4. Here's the other conundrum. Technically, the D800 is very close to the equivalent of the D4 at the most useful higher ISO values (e.g. ISO 1600 through 6400). That's assuming, of course, that you downsize the D800's results to 16mp, and do so with care. The lower in that ISO range you shoot, the more I'd tend to say the D800 matches or exceeds the D4 (you get acuity gains with the D800 or D800E when you downsize well). On a per pixel basis, the D800 obviously isn't as good as a D4 at the same higher ISO values, though.

    Of course, at the lower ISO levels, such as base ISO, the D800 actually has more dynamic range than the D4. Let me put it this way: at base ISO, I'll take the results from a D800 or D800E over the D4 any day, even if I downsize to 16mp. Actually, especially if I downsize to 16mp (acuity gains, remember?). The D800 has remarkably deep shadow recovery at base ISO, the D4 a little less so. The D4 is not my sunrise/sunset/landscape camera of choice; the D800E is.

    Of course, the D4 shoots at very fast frame rates and the D800 doesn't. So we start to get to "purpose." The D800 isn't going to beat the D4 if you're always shooting rapid fire, as at some sports, wildlife, or events. It just isn't set up for that type of shooting, so you have to slow down and pick and choose your shots. On the flip side, the D4 isn't Nikon's best micro-managed, slow, careful shooting champion, either. That's where a D800E excels. Still, the D4 can deliver out-of-camera results that are great. To match them at higher ISO values with a D800 means you'll probably be post processing. So the number of images you shoot in a session starts to come into play, too.

    You're starting to see why my current bag has a D4 and a D800E in it. Which one I'm actually shooting with will depend upon what I'm doing. Unfortunately, that means I have two cameras with slightly different UIs, different batteries, different chargers, different cards, and surprisingly, a few different features. All of which just makes my life a little crazier than it should be (D4x or D800h, anyone?). If you're a one-camera person and trying to make the choice, you need to go back to "purpose." The more you specialize in fast, continuous shooting, the more the D4 should be your choice. Otherwise, a D800 might suffice.

If you're not already at the pro camera level, then we have other things to talk about. US$6000 is a pretty big commitment to a camera body. The question you need to ask yourself is whether you're committing to the body or the sensor. Put another way, what problem are you really trying to solve moving up from, say, a consumer DX body?

  • Just want to go FX. The D4 is most likely not the proper choice. If your prime reason to jump to a D4 is just the FX aspect, then the D600 and D800 have to be considered, especially considered that those bodies outperform the D4 at some things (base ISO dynamic range and pixel count for large images or cropping, for example).
  • Want to shoot in low-light. Make sure you understand what your current limitation is and consider how much you'd spend for each step of improvement. For example, a D80 or D200 user is highly constrained at high ISO values. Even a D90, D300, or D7000 is a step forward in low light performance. How many steps forward do you really need? The reason I ask that is that used D3 and D700 bodies are considerable steps forward for many older camera users and might be a far better choice due to the lower price you'd pay for one in excellent condition compared to the D4. Sure, the D4 might really clean up that ISO 6400 image compared to the D3 or D700, but are you really willing to pay that much money for the privilege?
  • Want to shoot lots of fast bursts of shots. I'm not sure that the difference between 8 fps and 10 fps is even close to justifying the expense of switching from a D300 to a D4 (but some of the other differences might push you over the top). If high fps is what you want, there are quite a few ways to get it (D300 or D300s with grip at 8 fps, used D700 with grip at 8 fps, used D3 or D3s at 9 fps, and even the Nikon V2 at 15 fps with autofocus). I'm not a huge fan of "spray and pray" shooting, but you have far more choices than having to opt for Nikon's highest priced camera.
  • Want the pro integrated grip body. Can't blame you for wanting that, the pro bodies are built mostly like bricks and have proven over and over again they can withstand a lot of abuse (the new thumb pads notwithstanding). Again, a used D3 or D3s might be the right choice. If you're always shooting at base ISO, even a used D2x or D2xs makes sense.

As you might notice, it's tough to justify the big jump from an older, lower level body to the D4. I'd tend to say that you need to have all four of those "wants" I just described and plenty of cash in the bank to really make the leap from a lower, older model. Seriously look at what you gain by choosing a D4 over a D600: body build, double the frame rate, better AF system, lots of dedicated buttons, deep buffer, bigger battery are the main things. But you also lose some things, too: nearly US$4000, 8mp, and a built-in flash, for example. It's difficult to make the cost justification of a D4 over a D600 if you just want to go FX and have better low light performance than you've had on a DX body.

Video — You've probably heard a number of things about the D4's video. Let me see if I can guess what they are: (1) the video is "soft" compared to other DSLRs; and (2) the D4 can create uncompressed HD video streams. Both of those are true, but not exactly good or bad.

I'm not entirely sure why, but the D4 video created in camera (H.264 compression) is clearly "softer" than that which comes out of the D800. I'm not sure that's a bad thing, though. The D800 is prone to motion artifacts on fine detail. Pan across something that is close to the pixel pitch on a D800 and you'll get annoying "sparkle" on edges as they move. That's not true of the D4, at all. It doesn't help that the D800's sub-sampling is wider spread across rows and columns than it is on the D4. Personally, I don't find the D4 video to be "bad." Just softer on edges than other cameras are producing (the Canon 5D3 is between the D4 and D800 in this respect). I wouldn't get too excited about this attribute of the D4 unless you're primarily considering it as a video camera. If video is your main use of the D4, you very well might be better served by another DSLR (though hold that thought until you've read the next paragraph).

And yes, the D4 can produce uncompressed video streams. What you're going to do with that is another story. Can you really afford 12GB a minute? The costs add up fast when you capture uncompressed video. Very few folk really need that. On the other hand, the uncompressed stream from the HDMI port is useful with external devices that record into usable, more cost friendly formats, such as ProRes HQ. I outline this in another article. I've found that ProRes HQ nets me about 100GB per hour of recording, and very good looking video that can be further refined in Final Cut Pro X or Adobe After Effects. Moreover, I've found the results a bit less soft than with the native in-camera compression (though it took me a bit of experimentation to find the exact camera settings I liked best with my video workflow).

I'd call the D4 a highly competent video camera with an external recorder. To get better HD output you'd need to spend a lot more money. However, the audio side in-camera leaves a bit to be desired, so there, too, we're going to go off camera. I personally prefer to capture both video and audio with my Ki-Pro Mini than to do so directly in the D4. As in "much prefer." The microphone amp in the camera is noisy, at best.

Final Thoughts

The D4 is a superb camera. It ought to be since it occupies the top of Nikon's current DSLR lineup. The real question most users have is: do I need it?


Let's face it, beginning with the D3 and now certainly with the D4 and D800 we've moved into a different world. The real question is "how much camera do you really need?" I would argue that the D3s/D3x combo was all a pro really needed for a considerably long period forward (remember, that period started in 2008/2009). While one can say that the D4/D800 combo eclipses the D3s/D3x in many ways, the question is "do you need those changes"? I'm betting that the answer should be "no" for far more of you than would actually say "no." It's easy to get trapped into the "new is better," "more is better" game, after all.

I've long been a proponent of the "upgrade every other generation" notion. To do otherwise is to spend a lot of money on smaller changes and not get the true useful life out of a piece of gear. Some pros think they live on the hairy edge: they need every small advantage they can get in order to stay ahead of the fast moving crowd behind them. I'm not so sure. I'd be willing to take on a D4 user with my D3s. The extra pixels would be nice, but thoroughly knowing my camera and not having to master something new counts for something, too.

This trend is going to worsen until we have the next major disruption. One can imagine the D4 replacement being 24mp, for example, another 20% gain in resolution with perhaps no loss in noise handling. One can imagine a D3x replacement being 36mp or more, though past 36mp the gains are going to be difficult to capture and decline in visibility in normal usage.

Look at it another way: 2.5mp D1h in 2001, followed two years later by the 4mp D2h, followed four years later by the 12mp D3. Those were big moves in almost all respects. Then we had the D3s two years later and the D4 three years later. Much smaller moves. A pro trying to keep up with all of this would have spent US$26,000 on bodies, less what they could get for their older bodies on the used market. If they kept one generation as a backup, the total spent would still have been over US$20,000 in 11 years, or US$1800/year to stay current. Of course, well-heeled amateurs don't think that way, they just buy the latest and greatest as bragging rights. Still, this is a US$6000 camera (up from the old US$5000 price of the pro generation cameras). You really need to know this is the right camera for you and that you're going to get a return for that money.

I'm not trying to talk you out of a D4. I'm trying to make you justify getting a D4. If you can justify it (or have infinite disposable income), then great, you'll get all the things that I've described as differences above. But as I kept looking the D4 specs, and now that I've shot with it for awhile, I'm not as sure that I could justify it for my shooting. It's a nice step forward, but a relatively small one in almost every aspect I use most frequently. Some full time PJs and event shooters will probably find a bit more justification than I do, maybe even a lot of justification. I'm just cautioning that you don't make the knee-jerk reaction to buying a new generation just because there is one. Had the D4 been a 24mp camera with the same attributes it has, the step forward would be a little more clear. But it isn't. It's the same 12mp to 16mp step that I cautioned a few about getting too excited about in the consumer world. A step. But only a step, not a leap. Up through 2008 we tended to get leaps. Now we're getting steps. That's all I'm saying.


  • Mismatched Card Slots. Strange choice. Two XQD slots, please.
  • Ch-Ch-Ch-Changes. Going to XQD, new battery, new charger, new bottom (requires new plates for those of us that use them), new WiFi, all means a lot of additional upgrade expenses need to be considered.
  • Cheese has been Moved. Hard to use a D3 and D4 body simultaneously because of all the button/control moves and changes.


  • Near Noiseless Shooting. On a per pixel basis, as good as it gets, and even a small step up from the D3s.
  • Better Focus. Yes, it's a bit faster and more reliable than a D3; too bad we lost trap focus.
  • Still a Tank. With the exception of the thumb pads, built to a level you can't complain about.

Highly Recommended
