Nikon D7200 Specifications

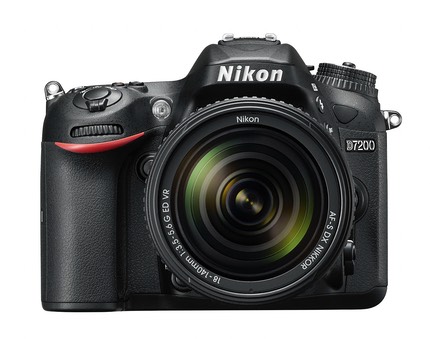

D7200 18 140 front.high
  • Introduced: 3/2/2015
  • Replacement: D7500 (2017)
  • Current Firmware: C1.04 (June 2018)
  • Sensor Size: 23.5x15.6mm, DX (~1.53x crop)
  • Sensor Pixels: 24.2mp
  • Sensor Manufacturer: Toshiba 5105
  • Sensor Technology: CMOS, Bayer, no antialias, microlens
  • Max Image Size: 6000 x 4000
  • Other Image Sizes: 4496 x 3000, 2992 x 2000; 1.3x: 4800 x 3200, 3600 x 2400, 2400 x1600
  • Video: 1080P 60/50/30/25/24, 720P 60/50, and VGA 24 (stored in .MOV with H.264 compression); mono sound from built-in mic, stereo from jack
  • ADC Bit Depth: 12 or 14 bit
  • Raw File Formats: 12 or 14 bit Lossless compressed or compressed NEF
  • Other File Formats: JPEG
  • JPEG/TIFF Rendering: 16-bit rendering, 8-bit output
  • Auto Rotation: Yes
  • Color Spaces: sRGB, AdobeRGB
  • Storage: SD, SDHC, or SDXC (two card slots)
  • Max Write Speed: ?MB/sec
  • Max Buffer Size: 100 JPEG (any JPEG setting), 18 RAW (9 with JPEG)
  • Connectivity: USB 2.0 HIGH
  • TV Support: NTSC and PAL, HDMI
  • Lens Support: all AF, AI-P, AI and AI-S
  • Autofocus Module: CAM3500DXII (51 sensor, 15 crosshatch)
  • Shutter Lag: 52ms (?ms blackout)
  • Autofocus Modes: Single, Dynamic (9, 21, 39, and 3D), Auto Area, Full Time (video, live view)
  • AF Assist: Yes (white lamp)
  • Metering: 2016-pixel Color matrix, center-weight, spot
  • Exposure Modes: PSAM + 18 Scene + 2 custom
  • Exposure Compensation: +/- 5 stops, 1/3 or 1/2 stop
  • Exposure Bracketing: Yes, 9 frames (plus ADL, WB bracketing)
  • ISO: 100-25600, AUTO
  • White Balance: Auto, bracketed, custom, 6 predefined with fine tuning, direct Kelvin
  • Image Settings: Picture Controls, Sharpening, Contrast, Saturation, Brightness, Hue
  • Color LCD: 3.2" TFT, 1.3m dots, 170 degree
  • Image Review: Histogram (RGB), Highlights
  • Continuous Shooting Speed: 6 fps, 7 fps in 1.3x crop, 3.7 fps in Live View
  • Shutter Speeds: 30s to 1/8000, bulb, 150k rated
  • Mirror Lockup: Mirror Delay, M-UP
  • Viewfinder: Pentaprism, 100%, 0.94x magnification, 19.5mm eyepoint, -3 to +1 diopters, opt gridlines
  • Optional Viewfinder Accessories: DR-6 right angle, -5 to +3 diopter corrections, DK-21M magnifier
  • Optional Focus Screens: ?
  • Menus: Playback, Shooting, Custom Settings, Setup, Retouch, MyMenu
  • Flash Sync Speed: 1/250, 1/320 with reduced power internal flash, TTL FP support for external flash
  • Flash Type: supports I-TTL, M, 2 Group Commander
  • Internal Flash: Yes GN 39ft 12m (ISO 100) (slightly higher in manual mode)
  • PC Sync: No (via optional AS-15)
  • Flash Compensation: -3 to +1EV
  • Flash Options: Red Eye, Slow Sync, Rear Sync, Flash Lock, Three Group Commander Mode
  • DOF Preview: Yes
  • Optional Remotes: ML-L3 IR (back and front), MC-D2 wired remote, WR-R10/WR-T10
  • Size: 5.3 x 4.2 x 3" (135.5 x 106.5 x 77mm)
  • Weight: 23.8 ounces (675g) without battery/card
  • Battery: EN-EL15 (1110 shots CIPA)
  • Optional AC Adatper: EH-5a
  • Significant other: WiFi with NFCSelf-cleaning sensor, HD video recording , Active D-Lighting, PictBridge, Optional MB-D15 battery pack, multiple exposure (2-3 images), auto distortion control, layered images, in-camera editing and trimming, in camera B&W and color filtration, in-camera D-Lighting, GPS support (GP-1), quiet shooting mode, virtual horizon, supports non-CPU lenses, AF-Fine Tune, Copyright information, FUNC button, Eye-Fi compatible, also WT-4a compatible, interval shooting, 2 custom user settings, quiet shooting mode
  • Supplied Software: ViewNX-i
  • Price at introduction: US$1199 (body only)
